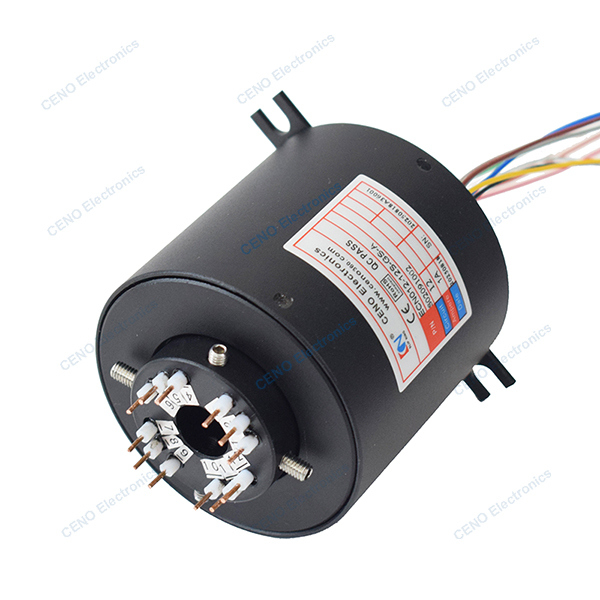

High Speed Slip Ring With 3000rpm and Through Hole Signal Rotary Joint
  • High Speed Slip Ring With 3000rpm and Through Hole Signal Rotary Joint
  • High Speed Slip Ring With 3000rpm and Through Hole Signal Rotary Joint
  • High Speed Slip Ring With 3000rpm and Through Hole Signal Rotary Joint
  • High Speed Slip Ring With 3000rpm and Through Hole Signal Rotary Joint

High Speed Slip Ring With 3000rpm and Through Hole Signal Rotary Joint

Tempat asal CINA
Nama merek CENO
Sertifikasi CE,RoHS,ISO9001,UL
Nomor model ECN012-12S-GS-A
Rincian produk
Saat Ini & Sirkuit:
12 sirkuit * 1A
Tegangan peringkat:
0-380VAC/VDC
Kekuatan dielektrik:
≥1000VAC@50Hz (Sinyal)
Resistensi isolasi:
≥500mΩ@500VDC
Kebisingan listrik:
Maks 30mΩ (50rpm)
Kecepatan operasi:
0~3000rpm
Bahan kontak:
Logam mulia
Bahan perumahan:
Paduan Aluminium
Suhu kerja:
-20 ° C ~+60 ° C.
Kelembaban yang bekerja:
60%
Nilai Perlindungan IP:
IP51
Diameter dalam:
Ø12mm
Diameter eksternal:
Ø65mm
Instalasi:
Perbaiki sisi stator dengan sisi anti-rotasi
Panjang & ukuran kawat timah:
Seperti yang disesuaikan
Menyoroti:

high speed slip ring 3000rpm

,

through hole signal rotary joint

,

high speed slip ring with warranty

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 pcs
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton/Sebagai permintaan
Waktu pengiriman
1 Minggu
Syarat-syarat pembayaran
T/T, PayPal, Western Union, L/C
Menyediakan kemampuan
1000 pcs per bulan
Deskripsi Produk
High Speed Slip Ring With 3000rpm and Through Hole Signal Rotary Joint ECN012-12S-GS-A is CENO high speed slip ring with working speed 3000rpm. As name showing, high-speed slip rings are specifically designed for equipment where need high-speed operating. Feature of high speed slip ring is their design prioritizes stability, reliability, and long life at high speeds. Offered high speed capabilities, low vibration, low noise, and minimal contact resistance fluctuation. For
