Pneumatic-Electric Slip Ring for air

Pneumatic-Electric Slip Ring for air

Tempat asal Cina
Nama merek CENO
Sertifikasi ISO9001,CE,RoHS
Nomor model QCN0101-04P2-01EM-A
Rincian produk
Peringkat Perlindungan:
IP51
Suhu Operasional:
-20℃ ~ +60℃
Kelembaban Pengoperasian:
Di bawah 60% RH
Nilai Tegangan:
0 ~ 220 VAC/VDC
Nilai Saat Ini:
4 saluran × 10 A; 1 grup × 100 Mbps
Spesifikasi kawat:
Kawat Teflon berlapis timah AWG #17, CAT5e
Kekuatan dielektrik:
≥500 VAC @ 50 Hz (daya); ≥300 VAC @ 50 Hz (sinyal)
Resistansi Isolasi (Normal):
≥500 MΩ @ 500 VDC (daya); ≥100 MΩ @ 100 VDC (sinyal)
Fluktuasi Resistensi:
30 mΩ (pada 50 rpm)
Panjang kawat:
Sisi rotor: Kabel Ethernet 10.000 mm; lainnya 1.500 mm Sisi Stator: Semua 1.500 mm
bahan kontak:
Logam mulia
Kecepatan Operasi:
0 ~ 50 rpm
Metode Pemasangan:
Flensa ujung rotor diperbaiki, flensa ujung stator diperbaiki
Bahan perumahan:
Paduan aluminium, sandblasted dan anodized
Saluran:
1 saluran × saluran udara
Metode Koneksi:
Tabung ø8 mm @ ulir G1/8".
Tekanan udara:
-100 kPa ~ 1,0 MPa
Menyoroti:

Pneumatic-Electric Slip Ring for air

,

Pneumatic Rotary Union with warranty

,

Slip Ring for pneumatic systems

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton
Waktu pengiriman
2 minggu
Syarat-syarat pembayaran
T/T, PayPal, Western Union
Menyediakan kemampuan
1000PCS PER Bulan
Deskripsi Produk

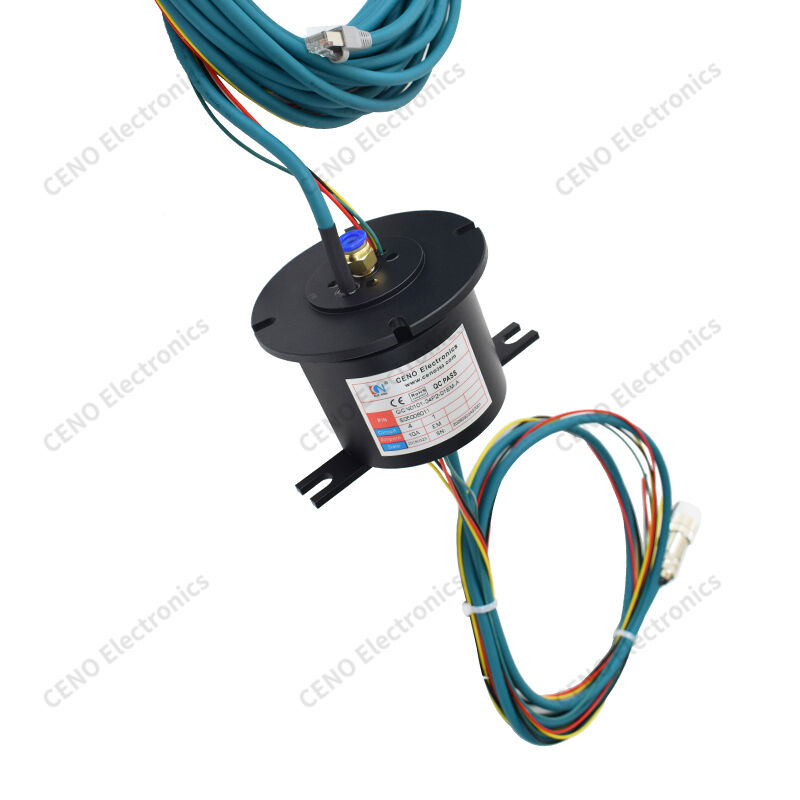

Pneumatic-Electric Slip Ring for air QCN0101-04P2-01EM-A is CENO Pneumatic-Electric Integrated Slip Ring unites pneumatic rotary joint, power conductive slip ring and Gigabit Ethernet channel inside one aluminum housing. It enables continuous 360° rotation while conveying compressed air, 4-circuit 10A power and industrial Ethernet signals without disconnection. It adopts flange installation, matched RJ45 port and aviation plug, with CE and RoHS industrial certifications.
