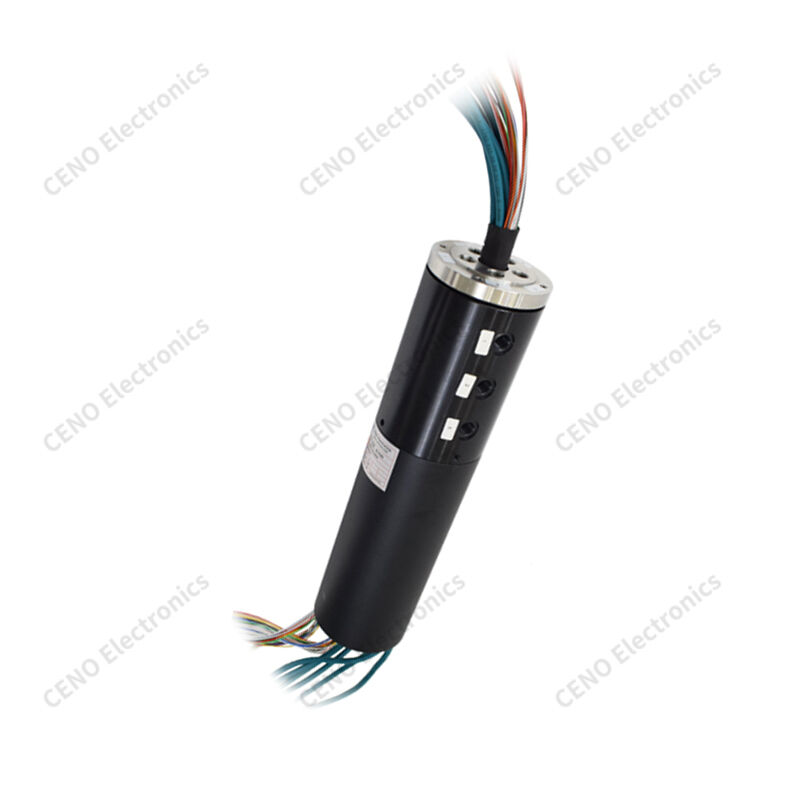

Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air
  • Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air
  • Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air
  • Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air
  • Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air
  • Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air
  • Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air
  • Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air
Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air

Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air

Tempat asal Cina
Nama merek CENO
Sertifikasi ISO9001,CE,RoHS
Nomor model QCN0502-45S-06EM
Rincian produk
Peringkat Perlindungan:
IP51
Kelembaban Pengoperasian:
Di bawah 60% RH
Suhu Operasional:
-20°C ~ +60°C
Spesifikasi kawat:
Kawat Teflon berlapis timah AWG #24; KUCING6
Tegangan Operasi:
0 ~ 30 VAC/VDC
Peringkat Arus Cincin/Saluran:
45 saluran × sinyal; 6 grup × Ethernet 100 Mbps
Kekuatan dielektrik:
≥300 VAC @ 50 Hz antara dua saluran mana pun
Resistensi Isolasi:
≥100 MΩ @ 300 VDC
Fluktuasi resistensi kontak:
≤30 mΩ (pada 50 rpm)
Panjang kawat:
Rotor: 450mm; Stator: 4.000mm
Kecepatan Operasi:
0 ~ 20 putaran/menit
Metode Pemasangan:
Pemasangan flensa rotor
bahan kontak:
Logam mulia / emas-ke-emas
Bahan perumahan:
Baja tahan karat + paduan Aluminium
Jumlah Saluran:
5 saluran × udara bertekanan (antarmuka koneksi: ulir G1/4", kompatibel dengan pipa ø8 mm)
Tekanan kerja:
1.0 MPa
Torsi berputar:
≤10,0 N·m
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton
Waktu pengiriman
2 minggu
Syarat-syarat pembayaran
T/T, PayPal, Western Union
Menyediakan kemampuan
1000PCS PER Bulan
Deskripsi Produk
Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air QCN0502-45S-06EM is CENO Pneumatic-Electric Integrated Slip Ring unites multi-channel pneumatic rotary joints, high-current shielded power circuits and multi-core signal lines into one compact aluminum cylinder, supporting unlimited 360° continuous rotation without tangled tubes or cables. Equipped with multiple independent sealed gas ports, separated shielded power cables and multi-color thin
