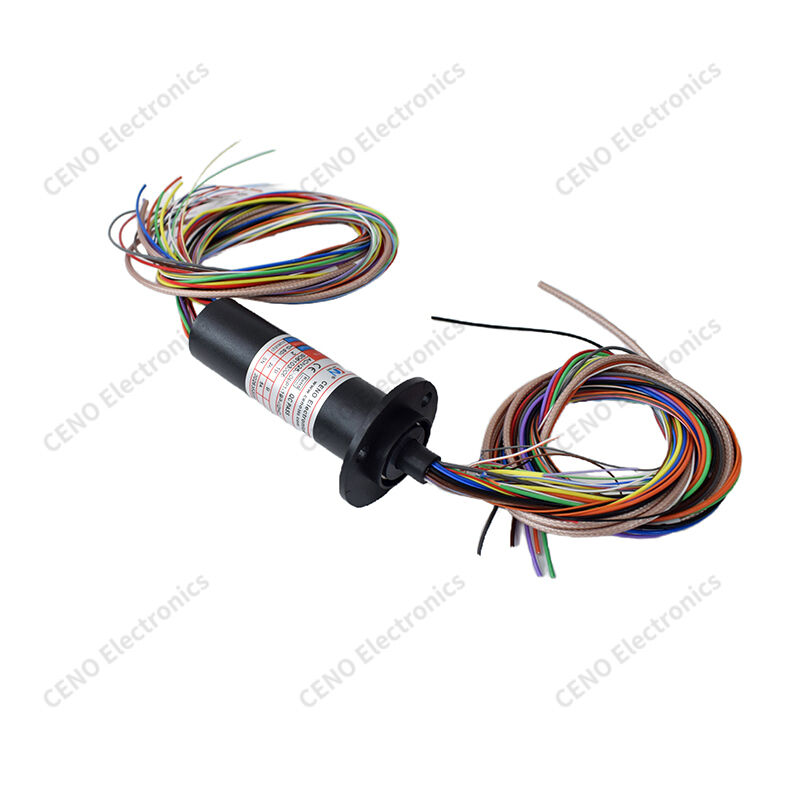

Multi-Channel Capsule Slip Ring with Low Crosstalk
  • Multi-Channel Capsule Slip Ring with Low Crosstalk
  • Multi-Channel Capsule Slip Ring with Low Crosstalk
  • Multi-Channel Capsule Slip Ring with Low Crosstalk
  • Multi-Channel Capsule Slip Ring with Low Crosstalk
  • Multi-Channel Capsule Slip Ring with Low Crosstalk
  • Multi-Channel Capsule Slip Ring with Low Crosstalk
  • Multi-Channel Capsule Slip Ring with Low Crosstalk
Multi-Channel Capsule Slip Ring with Low Crosstalk

Multi-Channel Capsule Slip Ring with Low Crosstalk

Tempat asal Cina
Nama merek CENO
Sertifikasi CE,RoHS,UL,ISO9001
Nomor model ACN25J-09P1-19P-02HD
Rincian produk
Perlindungan (Kelas IP):
IP40
Kelembaban kerja:
60% RH
Suhu Kerja:
-20°C~+60°C
Tegangan Peringkat:
2~110 AC/DC
Sirkuit & Arus:
2 Sirkuit * HD-SDI; 19 Sirkuit * 2A; 9 Sirkuit * 5A
Kekuatan dielektrik:
≥200VAC@50Hz(P) ; ≥100VAC@50Hz(S)
Resistensi Isolasi:
≥50MΩ@200VDC(P) ; ≥10MΩ@100VDC(S)
Kebisingan listrik:
Maks 35mΩ
Panjang kawat timbal:
Rotor:600±5mm; Stator:600±5mm
Kecepatan Kerja:
0 ~ 50rpm
bahan kontak:
Emas ke Emas
Bahan perumahan:
Plastik Rekayasa
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton
Waktu pengiriman
Dari rak
Syarat-syarat pembayaran
T/T, PayPal, Western Union, L/C
Menyediakan kemampuan
Bulan 10000 pcs
Deskripsi Produk
Multi-Channel Capsule Slip Ring with Low Crosstalk ACN25J-09P1-19P-02HD is CENO multi‑channel flange‑mount capsule slip ring delivers stable transmission for numerous low‑voltage control signals and minor power. Housed within compact 22 mm engineered plastic casing, it adopts isolated circuit layout and flange bolt‑on fixing to resist mechanical vibration. Every unit undergoes full‑function QC inspection with CE compliance and traceable batch records. Fine precious‑metal
