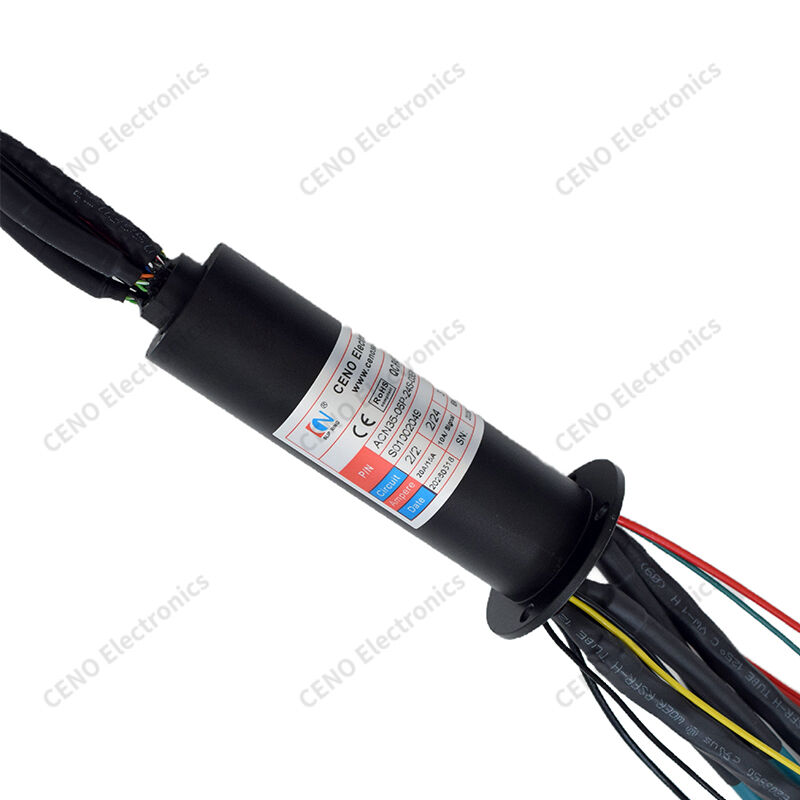

Factory Tested Capsule Slip Ring with Traceability
  • Factory Tested Capsule Slip Ring with Traceability
  • Factory Tested Capsule Slip Ring with Traceability
  • Factory Tested Capsule Slip Ring with Traceability
  • Factory Tested Capsule Slip Ring with Traceability
  • Factory Tested Capsule Slip Ring with Traceability
  • Factory Tested Capsule Slip Ring with Traceability
  • Factory Tested Capsule Slip Ring with Traceability
Factory Tested Capsule Slip Ring with Traceability

Factory Tested Capsule Slip Ring with Traceability

Tempat asal Cina
Nama merek CENO
Sertifikasi CE,RoHS,UL,ISO9001
Nomor model ACN35-06P-24S-03EM
Rincian produk
Peringkat Perlindungan:
IP40
Kelembaban Pengoperasian:
Di bawah 60% RH
Suhu Operasional:
–40°C hingga +60°C
Spesifikasi kawat:
Kawat Teflon® kaleng AWG 17#/14#/28# @ UL; pasangan terpilin terlindung dua inti (AWG 26#); KUCING6
Tegangan Operasi:
0–280 VAC/VDC
Arus per Dering/Saluran:
2 sirkuit × 20 A (pada 28 V); 2 sirkuit × 15 A (pada 28 V); 2 sirkuit × 10 A (pada 28 V); 24 sirkuit
Kekuatan dielektrik:
≥300 VAC @ 50 Hz antara dua sirkuit mana pun
Resistensi Isolasi:
≥100 MΩ @ 250 VDC
Variasi Resistensi Kontak:
≤30 mΩ (diukur pada 50 rpm)
Panjang kawat timbal:
Rotor: 500mm; Stator: 300mm
Kecepatan Operasi:
0–100 rpm
Metode Pemasangan:
Ujung rotor diamankan ke spindel yang disediakan pelanggan dengan sekrup
bahan kontak:
Logam mulia
Bahan perumahan:
Paduan aluminium, sandblasted dan hitam
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton
Waktu pengiriman
Dari rak
Syarat-syarat pembayaran
T/T, PayPal, Western Union, L/C
Menyediakan kemampuan
Bulan 10000 pcs
Deskripsi Produk
Factory Tested Capsule Slip Ring with Traceability ACN35-06P-24S-03EM is CENO capsule‑type slip ring enables continuous 360‑degree unlimited rotation to transfer power and control signals without wire tangling or breakage. Built‑in precious‑metal contact pairs deliver stable electrical performance for mass‑volume OEM equipment integration. Each unit undergoes full‑range factory testing with unique SN traceability. UL‑approved high‑temperature wires are equipped. Standard
