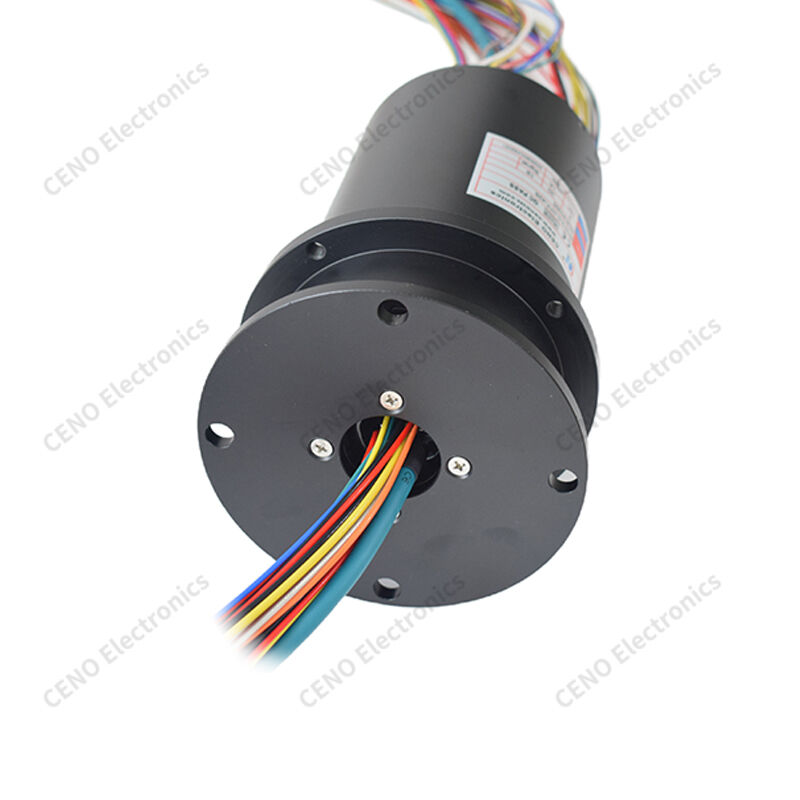

Flange-Mount Hybrid Slip Ring with 42 Circuits for Power & Signal
  • Flange-Mount Hybrid Slip Ring with 42 Circuits for Power & Signal
  • Flange-Mount Hybrid Slip Ring with 42 Circuits for Power & Signal
  • Flange-Mount Hybrid Slip Ring with 42 Circuits for Power & Signal
  • Flange-Mount Hybrid Slip Ring with 42 Circuits for Power & Signal
  • Flange-Mount Hybrid Slip Ring with 42 Circuits for Power & Signal
  • Flange-Mount Hybrid Slip Ring with 42 Circuits for Power & Signal
  • Flange-Mount Hybrid Slip Ring with 42 Circuits for Power & Signal
Flange-Mount Hybrid Slip Ring with 42 Circuits for Power & Signal

Flange-Mount Hybrid Slip Ring with 42 Circuits for Power & Signal

Tempat asal Cina
Nama merek CENO
Sertifikasi CE,RoHS,UL,ISO9001
Nomor model BHCN-C-07P-42S
Rincian produk
Perlindungan (Kelas IP):
IP51
Kelembaban kerja:
100%RH
Suhu Kerja:
-20 ℃ ~+60 ℃
Tegangan Peringkat:
220VAC/24VDC
Sirkuit & Arus:
3 Sirkuit * Pemanas (220VAC,16A) 20 Sirkuit * Sinyal (220VAC,1A) 19 Sirkuit * Sinyal (24VDC,ENCODER,
Kekuatan dielektrik:
≥1000V@50Hz
Resistensi Isolasi:
≥300MΩ@500VDC
bahan kontak:
Logam mulia
Kebisingan listrik:
Maks 10mΩ (50rpm)
Panjang kawat timbal:
Rotor: 400mm; Stator: 400mm
Kecepatan Kerja:
0～15rpm
Bahan perumahan:
Paduan Aluminium
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton
Waktu pengiriman
Dari rak
Syarat-syarat pembayaran
T/T, PayPal, Western Union, L/C
Menyediakan kemampuan
Bulan 10000 pcs
Deskripsi Produk
Flange-Mount Hybrid Slip Ring with 42 Circuits for Power & Signal BHCN-C-07P-42S is CENO flange‑type hybrid slip ring enables continuous unlimited 360‑degree rotation for industrial rotary equipment, integrating high‑power supply, low‑voltage power and control signal transmission within single unit. It comes with total 42 circuits including 3×16A power channels, 20×1A power channels and 19 dedicated signal channels. Built‑in precious‑metal multi‑contact brushes stabilize

Tag:

cincin slip digital,

cincin slip tegangan tinggi,

cincin slip bore besar
