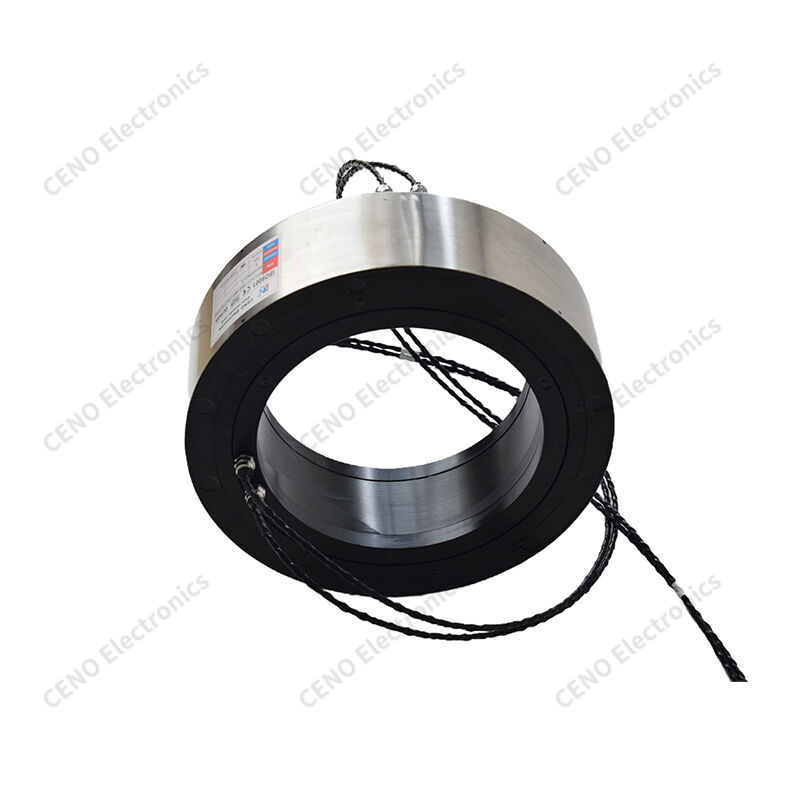

260mm Large-Bore Through-Hole Slip Ring with IP65 & Aviation Connectors

260mm Large-Bore Through-Hole Slip Ring with IP65 & Aviation Connectors

Tempat asal Cina
Nama merek CENO
Sertifikasi CE,RoHS,UL,ISO9001
Nomor model BHCN-C-260-08P-CB-DW-IP65
Rincian produk
Tingkat Perlindungan:
IP65
Kelembaban Pengoperasian:
<90% (pada 20°C)
Suhu Operasional:
–40°C hingga +60°C
Kecepatan Operasi:
0–8 rpm
Tegangan Operasi:
1000 VAC
Jumlah rangkaian/arus:
8 sirkuit × 10 A
Kekuatan dielektrik:
≥2000 V @ 50 Hz (antara dua sirkuit mana pun)
Resistensi Isolasi:
500 MΩ @ 1000 VDC
Fluktuasi resistensi kontak:
≤70 mΩ (pada 50 rpm)
bahan kontak:
Tembaga-grafit
Pemeliharaan:
Diperlukan perawatan rutin
Panjang kawat timbal:
Rotor: 1000mm; Stator: 1000mm
Metode Pemasangan:
Pemasangan vertikal & horizontal
Bahan perumahan:
Baja tahan karat (selongsong luar)
Diameter lubang tembus:
ø260 mm
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton
Waktu pengiriman
Dari rak
Syarat-syarat pembayaran
T/T, PayPal, Western Union, L/C
Menyediakan kemampuan
Bulan 10000 pcs
Deskripsi Produk
260mm Large-Bore Through-Hole Slip Ring with IP65 & Aviation Connectors BHCN-C-260-08P-CB-DW-IP65 is CENO large‑bore through‑hole slip ring is engineered for heavy‑duty rotary machinery with 260 mm central aperture allowing drive shafts to pass directly through. It offers 8 circuits rated at 10A each for power and signal transmission. Pre‑fitted aviation connectors with shielded cables simplify field assembly. Stainless‑steel housing with sealing structure achieves IP65
