Compact Solid Shaft Slip Ring with 20A Power and Signal Channels
  • Compact Solid Shaft Slip Ring with 20A Power and Signal Channels
  • Compact Solid Shaft Slip Ring with 20A Power and Signal Channels
  • Compact Solid Shaft Slip Ring with 20A Power and Signal Channels
  • Compact Solid Shaft Slip Ring with 20A Power and Signal Channels
  • Compact Solid Shaft Slip Ring with 20A Power and Signal Channels
  • Compact Solid Shaft Slip Ring with 20A Power and Signal Channels
  • Compact Solid Shaft Slip Ring with 20A Power and Signal Channels
Compact Solid Shaft Slip Ring with 20A Power and Signal Channels

Compact Solid Shaft Slip Ring with 20A Power and Signal Channels

Tempat asal Cina
Nama merek CENO
Sertifikasi CE,RoHS,UL,ISO9001
Nomor model ECN000-03P4-09S
Rincian produk
Perlindungan (Kelas IP):
IP51
Kelembaban kerja:
60% RH
Suhu Kerja:
-20 ℃ ~+60 ℃
Ukuran kawat timah:
AWG22#Kawat Teflon
Tegangan Peringkat:
0~24VAC/VDC
Sirkuit & Arus:
3 Sirkuit* 20A; 9 Sirkuit * Sinyal
Kekuatan dielektrik:
≥300VAC@50Hz
Resistensi Isolasi:
100MΩ@300VDC
Kebisingan listrik:
Maks 30mΩ
Panjang kawat timbal:
Rotor: 300mm; Stator: 300mm
Kecepatan Kerja:
0~60rpm
Cara Instalasi:
Pemasangan flange sisi stator
bahan kontak:
Logam mulia
Bahan perumahan:
Paduan Aluminium
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton
Waktu pengiriman
Dari rak
Syarat-syarat pembayaran
T/T, PayPal, Western Union, L/C
Menyediakan kemampuan
Bulan 10000 pcs
Deskripsi Produk

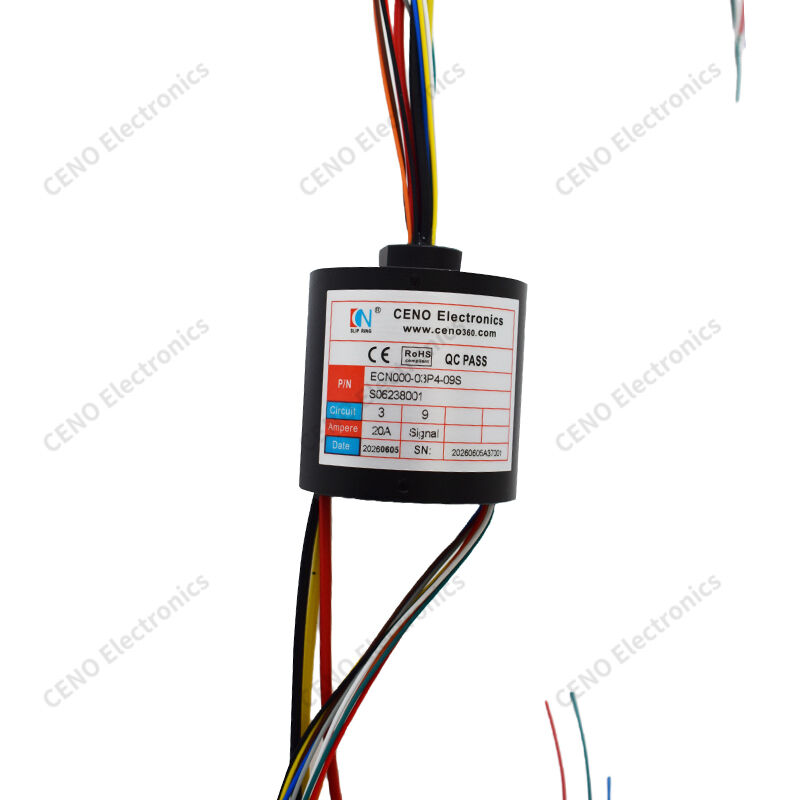

Compact Solid Shaft Slip Ring with 20A Power and Signal Channels ECN000-03P4-09S is CENO compact solid‑shaft slip ring enables unlimited 360‑degree rotation for power and low‑level control‑signal transmission. It integrates three 20A power circuits and nine signal channels. Precious‑metal contact structure guarantees stable electrical performance during continuous rotation. Bare stranded wires extend from both ends for convenient on‑site wiring. CE and RoHS approved, suited
