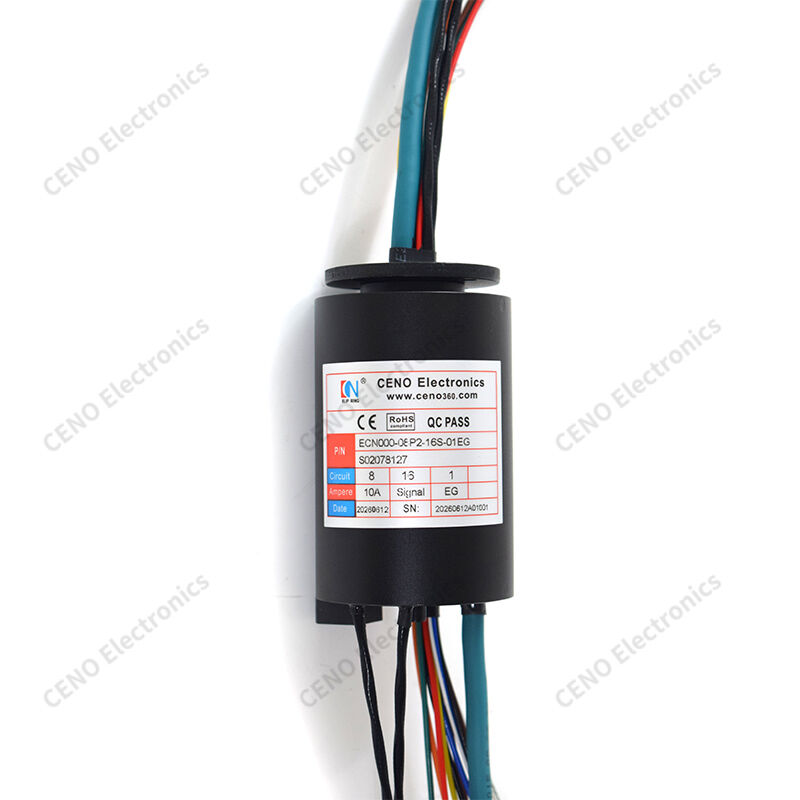

Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability
  • Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability
  • Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability
  • Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability
  • Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability
  • Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability
  • Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability
  • Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability
Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability

Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability

Tempat asal Cina
Nama merek CENO
Sertifikasi CE,RoHS,ISO9001,UL
Nomor model ECN000-08P2-16S-01EG
Rincian produk
Peringkat Perlindungan:
IP51
Kelembaban Pengoperasian:
Di bawah 60% RH
Suhu Operasional:
-20°C Hingga +60°C
Spesifikasi kawat:
AWG17#/24# PTFE UL kaleng, kabel berpelindung pasangan terpilin dua inti, CAT
Tegangan Operasi:
0~24VAC/VDC
Hitungan Sirkuit/Arus:
8 sirkuit × 10A; 12 sirkuit × sinyal; 2 grup × RS485; 1 grup × Gigabit Ethernet
Kekuatan dielektrik:
≥300VAC@50Hz antara dua sirkuit
Resistensi Isolasi:
100MΩ@300VDC
Fluktuasi resistensi kontak:
≤30mΩ (beroperasi pada 50rpm)
Panjang Timbal:
Rotor: 600mm; Stator: 600mm
Kecepatan Operasi:
0 ~ 300rpm
Metode Pemasangan:
Ujung rotor digerakkan dengan posisi datar, ujung stator dipasang dengan flensa
bahan kontak:
Logam mulia/emas-ke-emas
Bahan perumahan:
Paduan aluminium, sandblasted dan anodisasi hitam
Kehidupan pelayanan:
10 juta revolusi
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton / Sesuai permintaan
Waktu pengiriman
1 minggu
Syarat-syarat pembayaran
T/T, PayPal, Western Union
Menyediakan kemampuan
500 buah per bulan
Deskripsi Produk
Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability ECN000-08P2-16S-01EG is CENO ethernet slip ring enables simultaneous power, signal and Ethernet transfer while rotating 360° without angular limit. Internal channel partitioning keeps data integrity intact under continuous cyclic movement. Hard anodized aluminum casing delivers reliable mechanical stability for long-run field deployment. Each unit undergoes live rotation validation prior to dispatch.
