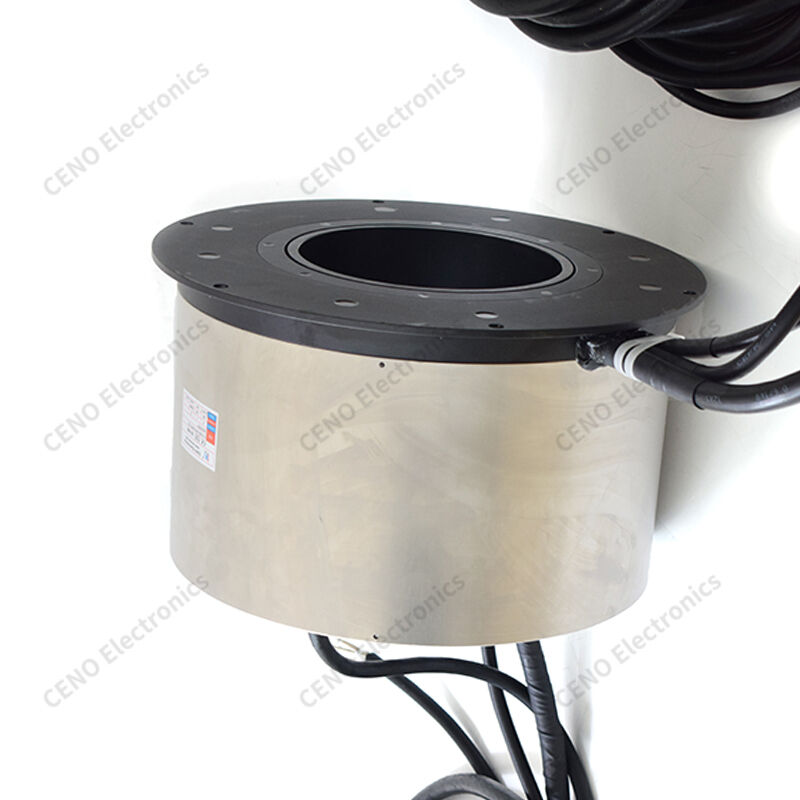

Large-Bore Through-Hole Slip Ring Built with Rugged Aluminum Alloy Housing

Large-Bore Through-Hole Slip Ring Built with Rugged Aluminum Alloy Housing

Tempat asal Tiongkok
Nama merek CENO
Sertifikasi CE,RoHS,UL,ISO9001
Nomor model ECN200-04P4-03P3-12S
Rincian produk
Peringkat IP:
IP56
Kelembaban Pengoperasian:
≤ 90%RH
Suhu Operasional:
-20°C Hingga +60°C
Tegangan Operasi:
0~380VAC/VDC
Sirkuit & Arus:
4 sirkuit × 20A (380VAC); 2 sirkuit × 15A (220VAC); 12 sirkuit × Sinyal (220VAC)
Kekuatan dielektrik:
≥1500VAC@50Hz (antar sirkuit)
Resistensi isolasi:
1000mΩ@500VDC
Fluktuasi resistensi kontak:
≤30mΩ (pada 50rpm)
Panjang kawat timbal:
Rotor: 8000mm; Stator: 8000mm
Kecepatan Operasi:
0 ~ 10rpm
Metode Pemasangan:
Ujung rotor diamankan ke poros yang disediakan pelanggan dengan sekrup
bahan kontak:
Logam mulia
Bahan Perumahan:
Baja tahan karat + paduan Aluminium
Diameter Lubang Melalui:
ø200mm
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Dapat dinegosiasikan
Kemasan rincian
karton
Waktu pengiriman
Dari rak
Syarat-syarat pembayaran
T/T, PayPal, Western Union, L/C
Menyediakan kemampuan
Bulan 10000 pcs
Deskripsi Produk
Large-Bore Through-Hole Slip Ring Built with Rugged Aluminum Alloy Housing ECN200-04P4-03P3-12S is CENO large-bore through-hole slip ring with a Ø25.4mm inner bore, designed for heavy-duty industrial rotating systems. It integrates 3 circuits of power or signal transmission through precious metal contacts, ensuring stable and low-noise performance. The rugged aluminum alloy housing handles high-speed rotation up to 300 rpm. Each unit is serialized and CE/RoHS certified,

Tag:

cincin slip termokopel,

miniatur melalui cincin slip bore,

cincin slip poros berongga
