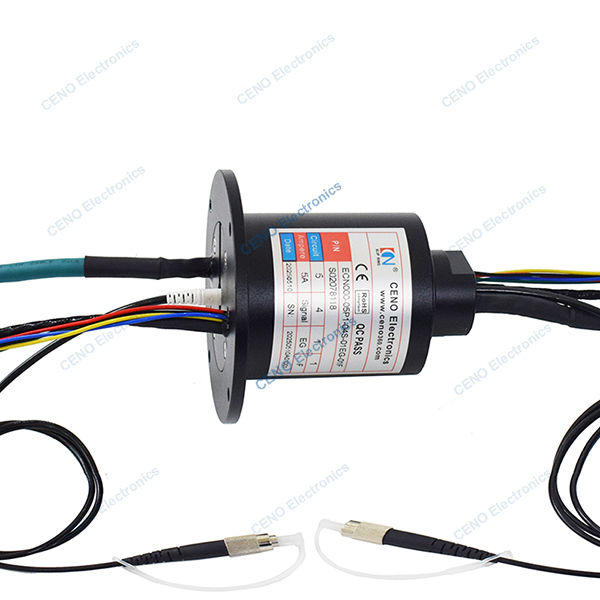

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

Tempat asal Cina
Nama merek CENO
Sertifikasi CE,RoHS,ISO9001,UL
Nomor model ECN000-05P1-04S-01EG-01F
Rincian produk
serat optik:
5 * 5A; 4 * sinyal; 1 * Ethernet; 1 * Serat optik
Tegangan Peringkat:
0 ~ 220 VAC/VDC
Kekuatan dielektrik:
≥1000VAC@50Hz; ≥300VAC@50Hz
Resistensi isolasi:
≥500MΩ@500VDC; ≥500MΩ@500VDC; ≥100MΩ@300VDC ≥100MΩ@300VDC
Resistensi kontak:
≤ 10mΩ
Bahan kontak:
Logam mulia
Bahan Perumahan:
Aluminium paduan
Suhu Kerja:
-40°C~+50°C
Kelembaban kerja:
60% RH
tingkat perlindungan IP:
IP51
Kecepatan Operasi:
0~300rpm
Diameter luar:
Ø56mm
Ukuran & panjang kawat timah:
Sesuai permintaan
Panjang gelombang:
1310/1550
Masukkan kerugian:
＜2dB
Mengembalikan kerugian:
<30dB
Penyimpangan Penyisipan Kehilangan:
＜ ± 0,5db
Konektor:
FC
Cara pemasangan:
Pemasangan flensa
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 PCS
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton/Sebagai permintaan
Waktu pengiriman
1 Minggu
Syarat-syarat pembayaran
T/T, PayPal, Western Union
Menyediakan kemampuan
1000PCS Per Bulan
Deskripsi Produk

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

ECN000-05P1-04S-01EG-01F is CENO Integrate electric power signal and fiber optic rotary joint slip ring, that is equipped in the machine working in low temperature -40°C~+50°C. Slip ring is an electro-mechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. CENO integrate fiber optic rotary joint slip rings are developed for rugged environment and demanding requirements, and performing in aerospace and defense application.




Features

  • Integrate design combine power signal and fiber optic rotary joint
  • Low temperature design
  • Can be integrated various data
  • Install easy & Free maintenance


Applications

  • Robotics
  • Material conveying system
  • Radar system
  • Remote control system
  • Medical equipment


Optional

  • Circuit, Voltage, Current
  • Wave length & fiber type
  • Contact / Housing Materials
  • Structure and installation
  • Working speed & temperature




Specification

ECN000-05P1-04S-01EG-01F

Specification
Current & Circuits5 circuits * 5A; 4circuits * signal; 1 * Ethernet Signal; 1 * Fiber optic
Rating Voltage0 ~ 220 VAC/VDC
Dielectric strength≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave≤ 10mΩ
Working temperature-40°C~+50°C
Working humidity60 %RH
IP protection gradeIP51
Operating speed0~300rpm
Outer diameterØ56mm
Contact materialPrecious Metal
Housing materialAluminum Alloy
Lead wire lengthRotor: 1000mm; Stator: 1000mm
Installation wayFlange installation
Fiber Optic
Wave length1310/1550
Insert loss＜2dB
Return loss＜30dB
Insertion loss deviation＜±0.5dB
ConnectorFC
Cable lengthStator: 700±10mm; Rotor: 1100±15mm




Outline drawing

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring 0






CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
