Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation

Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation

Tempat asal Cina
Nama merek CENO
Sertifikasi CE,RoHS,ISO9001,UL
Nomor model ECN000-08P5-02P2-01F
Rincian produk
Peringkat Perlindungan:
IP65
Kelembaban Pengoperasian:
10–90% RH atau lebih rendah
Suhu Operasional:
-30°c Hingga +80°c
Spesifikasi kawat:
AWG12# teflon kaleng; AWG17# teflon kaleng
Tegangan Operasi:
0–350 VDC
Jumlah Rangkaian/Arus:
8 sirkuit × 30 A; 2 sirkuit × 10 A
Kekuatan dielektrik:
≥1000 VAC @ 50 Hz (P) antara dua sirkuit
Resistensi Isolasi:
≥300 MΩ @ 500 VDC (P)
Fluktuasi resistensi kontak:
≤30 mΩ (pada operasi 50 rpm)
Panjang kawat:
Rotor: 1000mm; Stator: 2000mm
Kecepatan Operasi:
0–250 rpm
Metode Pemasangan:
ujung stator dipasang dengan flensa; ujung rotor digerakkan dengan posisi datar
bahan kontak:
Logam mulia
Bahan perumahan:
Baja tahan karat + paduan Aluminium
Jumlah Saluran:
1
Modus Serat:
Mode tunggal (9-125 μm)
Panjang Gelombang Operasi:
1310/1550 nm
Kerugian penyisipan:
≤1,5 dB
Kembali Kerugian:
≥40dB
Panjang Kabel:
Stator: 2000 mm, Rotor: 1000 mm
Tipe Konektor:
Kedua LC
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton/Sebagai permintaan
Waktu pengiriman
1 Minggu
Syarat-syarat pembayaran
T/T, PayPal, Western Union
Menyediakan kemampuan
1000PCS PER Bulan
Deskripsi Produk

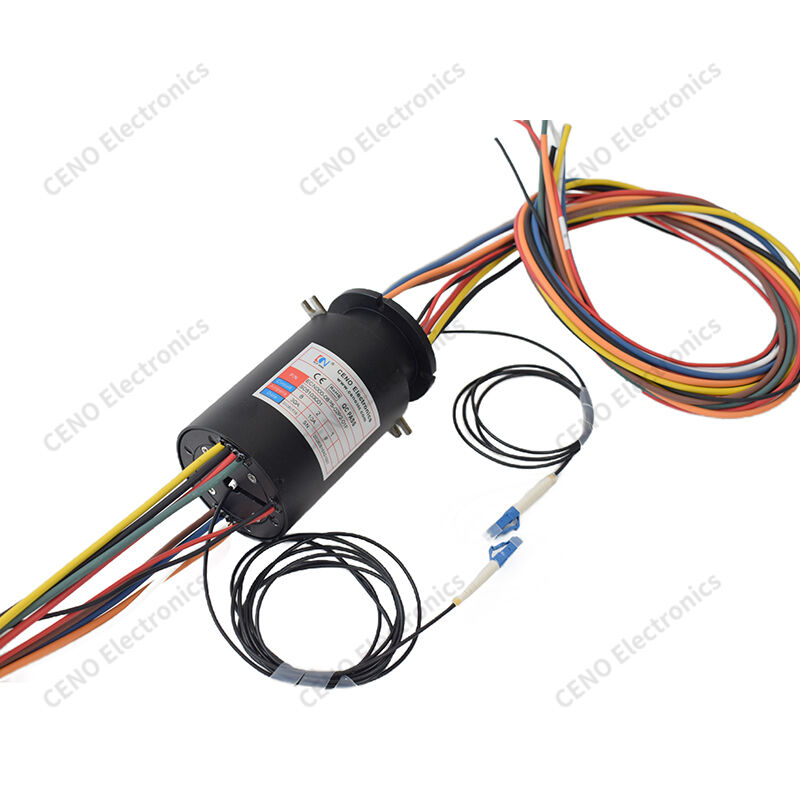

Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation ECN000-08P5-02P2-01F is CENO opto-electric hybrid flange slip ring combines electrical contact modules and fiber optic rotary joint. It supports 360° continuous unlimited rotation, transferring power, control signals and high-speed optical data simultaneously. Gold-alloy contacts guarantee steady electrical performance, and independent optical unit realizes low-loss fiber communication. CE and RoHS
