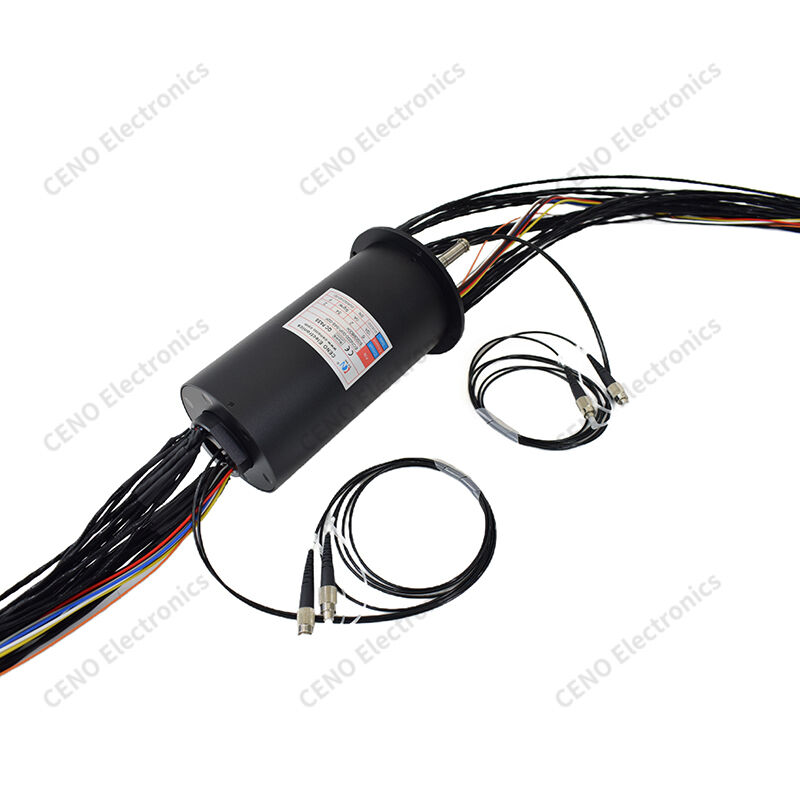

Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
Opto Electric Slip Ring for Marine Instruments and Factory Automation

Opto Electric Slip Ring for Marine Instruments and Factory Automation

Tempat asal Cina
Nama merek CENO
Sertifikasi CE,RoHS,ISO9001,UL
Nomor model ECN000-08P-54S-02F
Rincian produk
Peringkat Perlindungan:
IP51
Kelembaban Pengoperasian:
RH 60% atau lebih rendah
Suhu Operasional:
-40 ~ +55°C
Suhu Penyimpanan:
-50~+70°C
Spesifikasi kawat:
AWG14#/22# Teflon kaleng @UL; kabel terpilin terlindung dua inti (0,14 mm²); CAT5e
Tegangan Operasi:
0–220 VAC/VDC
Jumlah Rangkaian/Arus:
6 sirkuit × 10 A (220 V); 2 sirkuit × 5 A (24 V); 44 sirkuit × sinyal; 2 grup × RS422
Kekuatan dielektrik:
≥1000 VAC @ 50 Hz antara dua sirkuit (daya); ≥300 VAC @ 50 Hz antara dua sirkuit (sinyal)
Resistensi Isolasi:
≥500 MΩ @ 500 VDC (daya); ≥100 MΩ @ 100 VDC (sinyal)
Fluktuasi resistensi kontak:
≤30 mΩ (pada operasi 50 rpm)
Panjang kawat:
Rotor: 1000mm; Stator: 1000mm
Kecepatan Operasi:
0–100 rpm
Metode Pemasangan:
Ujung rotor dan ujung stator dipasang dengan flensa
bahan kontak:
Logam mulia
Bahan perumahan:
Paduan aluminium, sandblasted dan anodisasi hitam
Lainnya:
Sesuai dengan uji getaran GJB150.16A-2009
Modus Serat:
SM
Jumlah Saluran:
2
Panjang Gelombang Operasi:
1310/1550 nm
Kerugian penyisipan:
≤3,0 dB
Kembali Kerugian:
≥45 dB
Panjang Kabel:
Rotor: 1000mm,Stator: 1000mm
Tipe Konektor:
FC/FC
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Dapat dinegosiasikan
Kemasan rincian
Karton/Sebagai permintaan
Waktu pengiriman
1 Minggu
Syarat-syarat pembayaran
T/T, PayPal, Western Union
Menyediakan kemampuan
1000PCS PER Bulan
Deskripsi Produk
Opto Electric Slip Ring for Marine Instruments and Factory Automation ECN000-08P-54S-02F is CENO flange type opto-electric slip ring adopts solid rotating shaft, integrating electric contact assembly and fiber rotary coupler. It enables endless 360° rotation to deliver power, control commands and high-rate optical data. Precious metal contacts ensure stable electrical performance. Separate optical path keeps minimal signal attenuation. CE & RoHS approved, built for heavy-duty
